SSO & audit log

Flowdrome’s identity is self-hosted and durable: users, roles and sessions live in the Nucleus’s own database. The enterprise identity pack adds the two things every security review asks for first — single sign-on through your identity provider, and an append-only audit log you can filter, query over the API and export.

Single sign-on (OIDC)

One generic OpenID Connect configuration covers every mainstream provider — Okta, Microsoft Entra ID, Google, Keycloak, Auth0, or anything that serves {issuer}/.well-known/openid-configuration. The flow is Authorization Code + PKCE; the Nucleus discovers the provider’s endpoints from the issuer URL, validates the returned id_token (RS256 signature against the provider’s JWKS, plus issuer / audience / expiry / nonce checks) and signs the user in with the same session token a password login mints — one session system, two front doors.

Configure it

Admin → Users & Roles → Single sign-on (Manage capability):

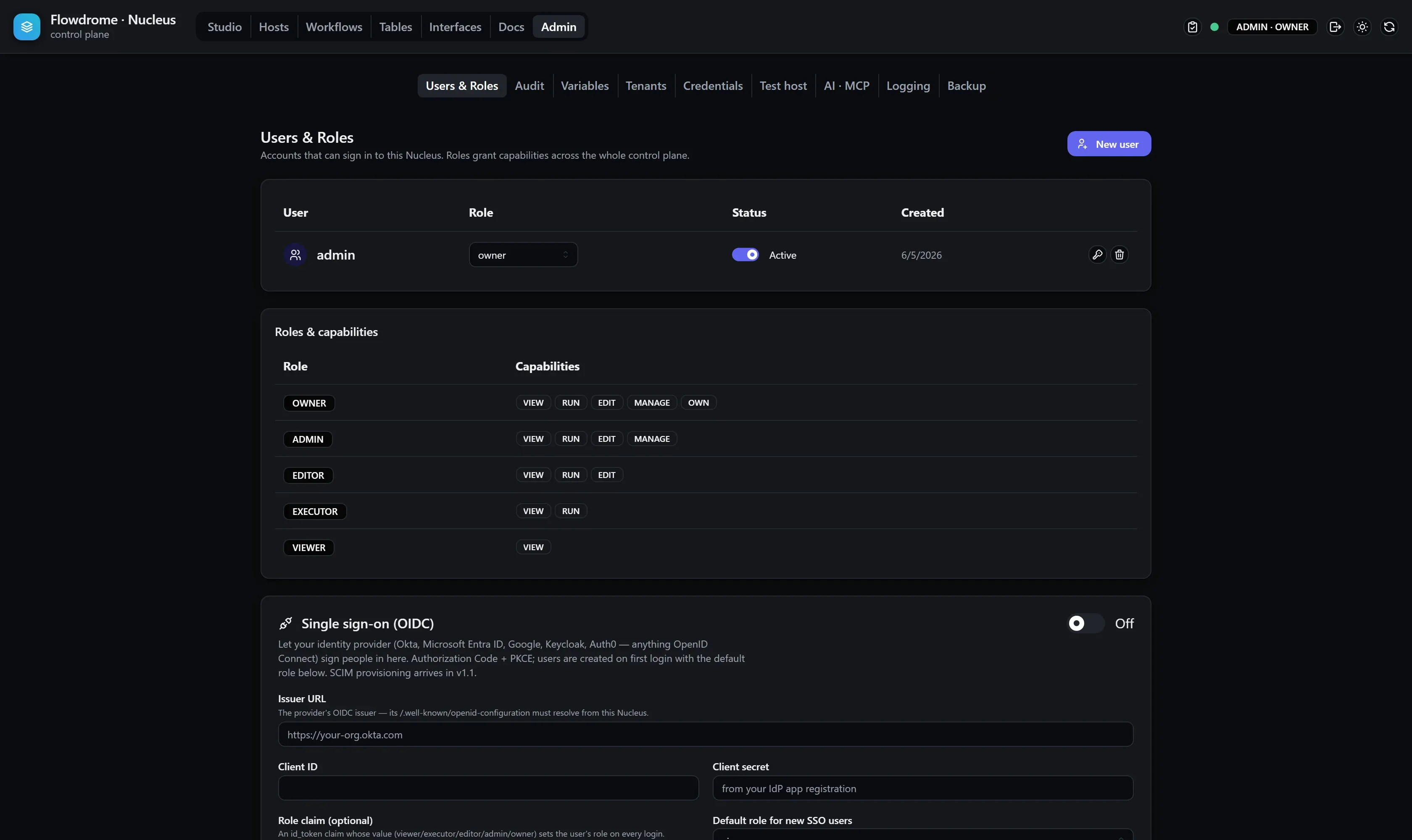

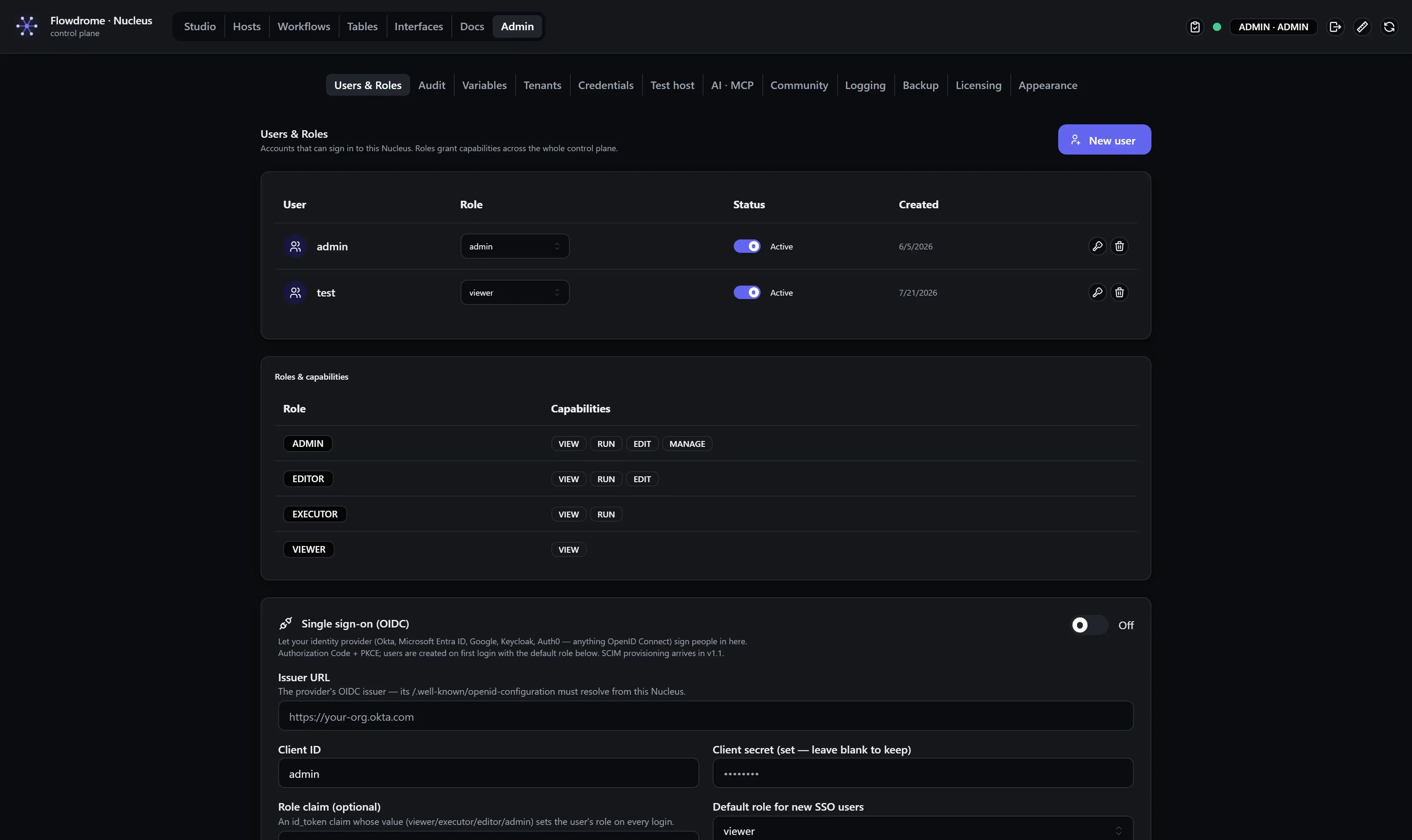

The Single sign-on settings section in Admin → Users & Roles: enable toggle, issuer URL, client ID, write-only client secret, role claim and default role fields — The SSO section — issuer + client registration; the secret is write-only and encrypted at rest.

Field	Meaning
Issuer URL	The provider’s OIDC issuer, e.g. `https://your-org.okta.com`, `https://login.microsoftonline.com/{tenant}/v2.0`, `https://accounts.google.com`. Its `/.well-known/openid-configuration` must be reachable from the Nucleus.
Client ID / secret	From your IdP app registration. The secret is write-only: the UI only ever shows whether one is set, and it is stored encrypted (AES-256-GCM, the same data key that protects the credentials vault). Leave the field blank on save to keep the stored value.
Role claim (optional)	An `id_token` claim whose value (`viewer` / `executor` / `editor` / `admin`) sets the user’s Flowdrome role on every login — the IdP becomes authoritative for roles. Leave empty to manage roles locally.
Default role	The role a first-time SSO user is created with (default `viewer`).

In your IdP, register a web application with the redirect URI:

https://<your-nucleus>/api/auth/oidc/callback

(The settings panel shows the exact value for your origin. Behind a reverse proxy, set FLOWDROME_OAUTH_PUBLIC_URL so the redirect URI carries the public origin.)

Provider notes:

Okta — create an OIDC Web App; issuer is your Okta domain (or a custom auth server’s issuer).
Microsoft Entra ID — App registration → Web platform; issuer is https://login.microsoftonline.com/<tenant-id>/v2.0.
Google — OAuth client (Web) in Cloud Console; issuer is https://accounts.google.com.

Signing in

Once enabled, the login dialog gains a Sign in with SSO button. Users are matched by their email claim (falling back to preferred_username, then sub); an unknown user is created on the spot with the default role, a disabled account is refused even with a valid IdP login, and SSO-provisioned accounts get an unusable random password — the IdP is their only door. Password sign-in for locally-created accounts keeps working alongside.

Audit log

Every consequential act on the control plane lands one row in an append-only audit table in the Nucleus’s database — there is no update or delete path, the log only grows:

logins — password and SSO, success and failure (with the failure reason)
users & roles — create, role change, enable/disable, password reset, delete
credentials — create, update, delete — names and templates only, never secret values
workflows — create, explicit (checkpoint) saves with their version, lock/unlock, delete, deploy/undeploy with the target host
variables and settings — variable changes, SSO / MCP / telemetry settings changes
backup — export (the file carries the decrypted vault — headline event) and restore
audit export itself — handing the whole trail to one person is audit-worthy too

Each entry records who (actor), what (a dotted action like workflow.deployed), the subject (type + id), a small JSON detail object, the source IP and the timestamp. Autosaves are deliberately not audited — only explicit saves that mint a version — so the trail stays signal, not noise.

Reading and exporting it

Admin → Audit is a dense, filterable table (actor, action, time window) with server-side paging. The same surface is API-queryable (Manage capability):

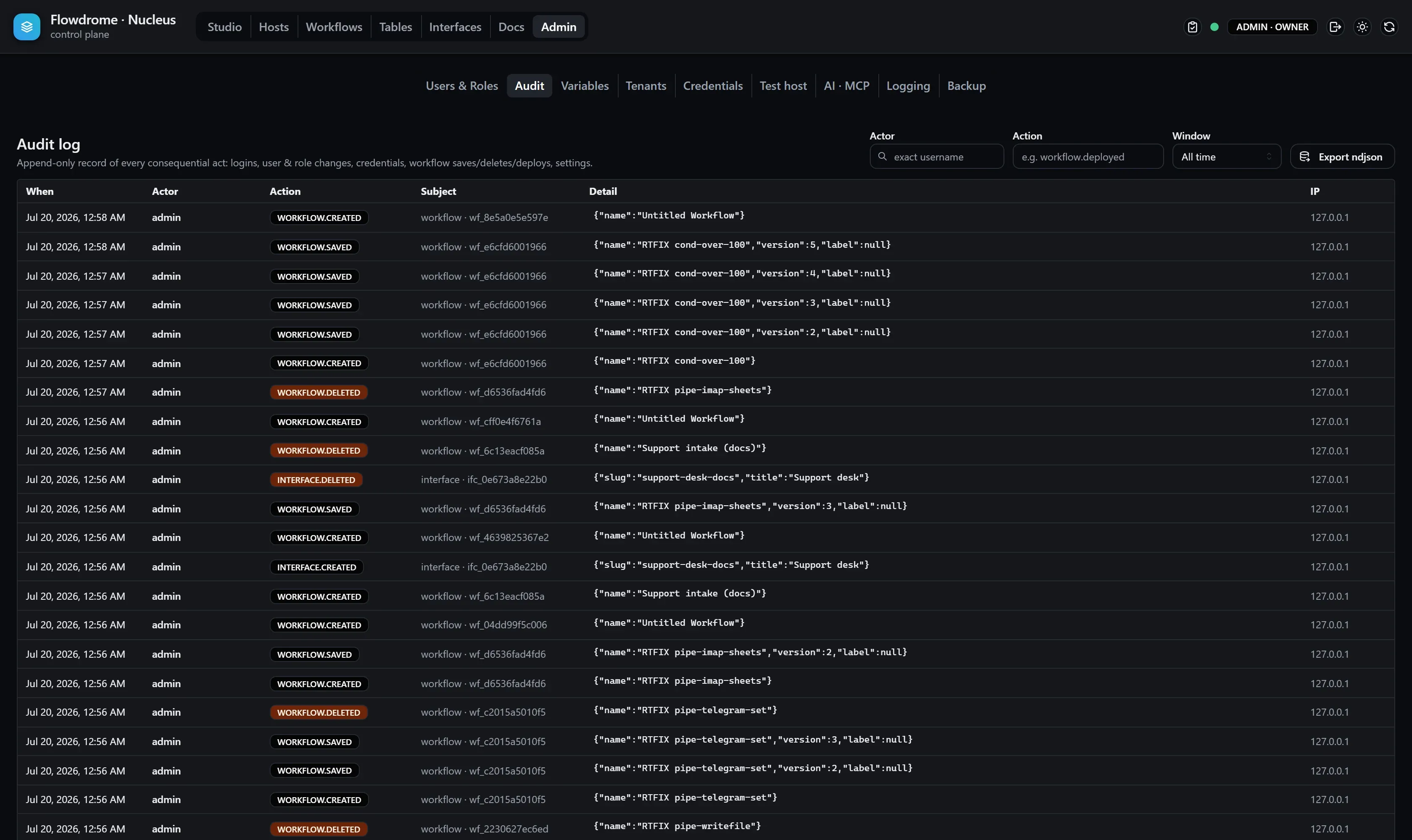

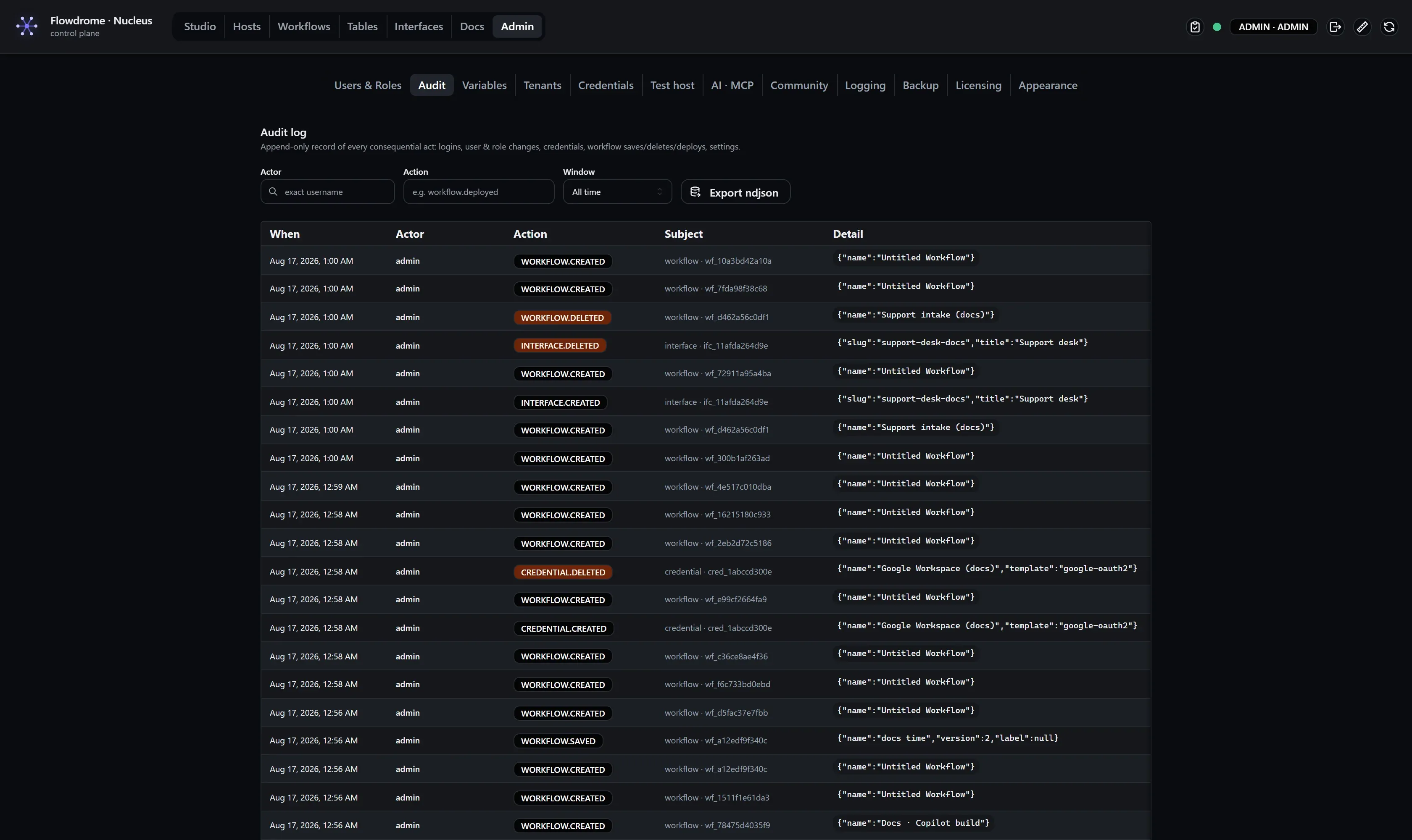

The Audit tab: a dense table of audit entries with timestamp, actor, action, subject and IP columns, actor/action filters and an Export ndjson button — The audit trail — every consequential act, filterable, exportable, append-only.

# newest first; filters are exact-match, since is unix-ms or ISO-8601
curl -H "Authorization: Bearer $TOKEN" \
  "https://<nucleus>/api/audit?limit=100&actor=jane@corp.test&action=workflow.deployed&since=2026-07-01T00:00:00Z"

# the whole log (oldest first) as newline-delimited JSON — constant memory however large
curl -H "Authorization: Bearer $TOKEN" "https://<nucleus>/api/audit/export" -o audit.ndjson

The Export ndjson button in the Audit tab does the same download, honoring the active filters — ready for your SIEM’s file/S3 ingestion or a quick jq session.
