Workflows & nodes

A workflow is a directed graph of nodes connected by edges between typed ports. You build it on the Studio canvas; the engine executes the same graph — in the editor’s test runs and, deployed, on every host.

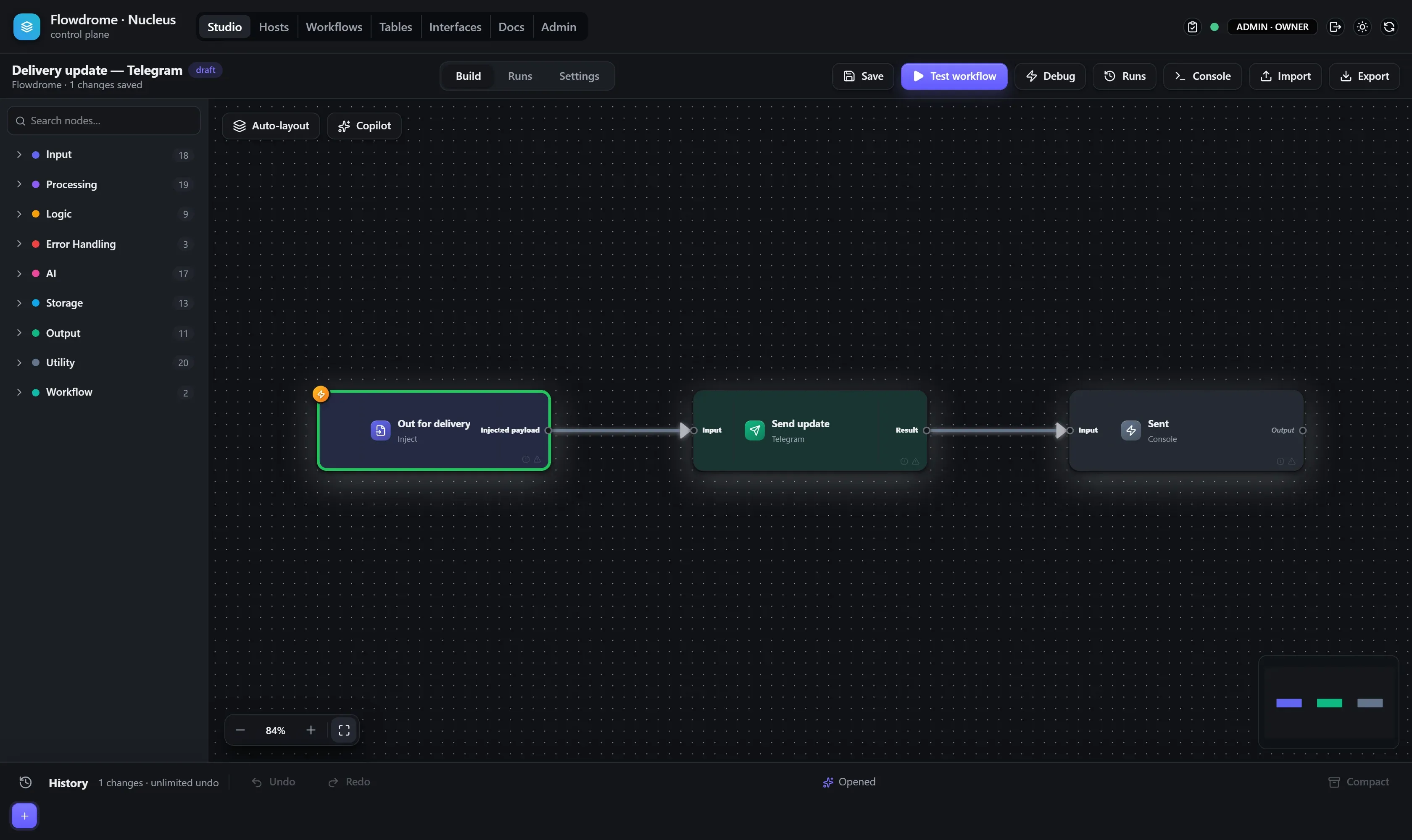

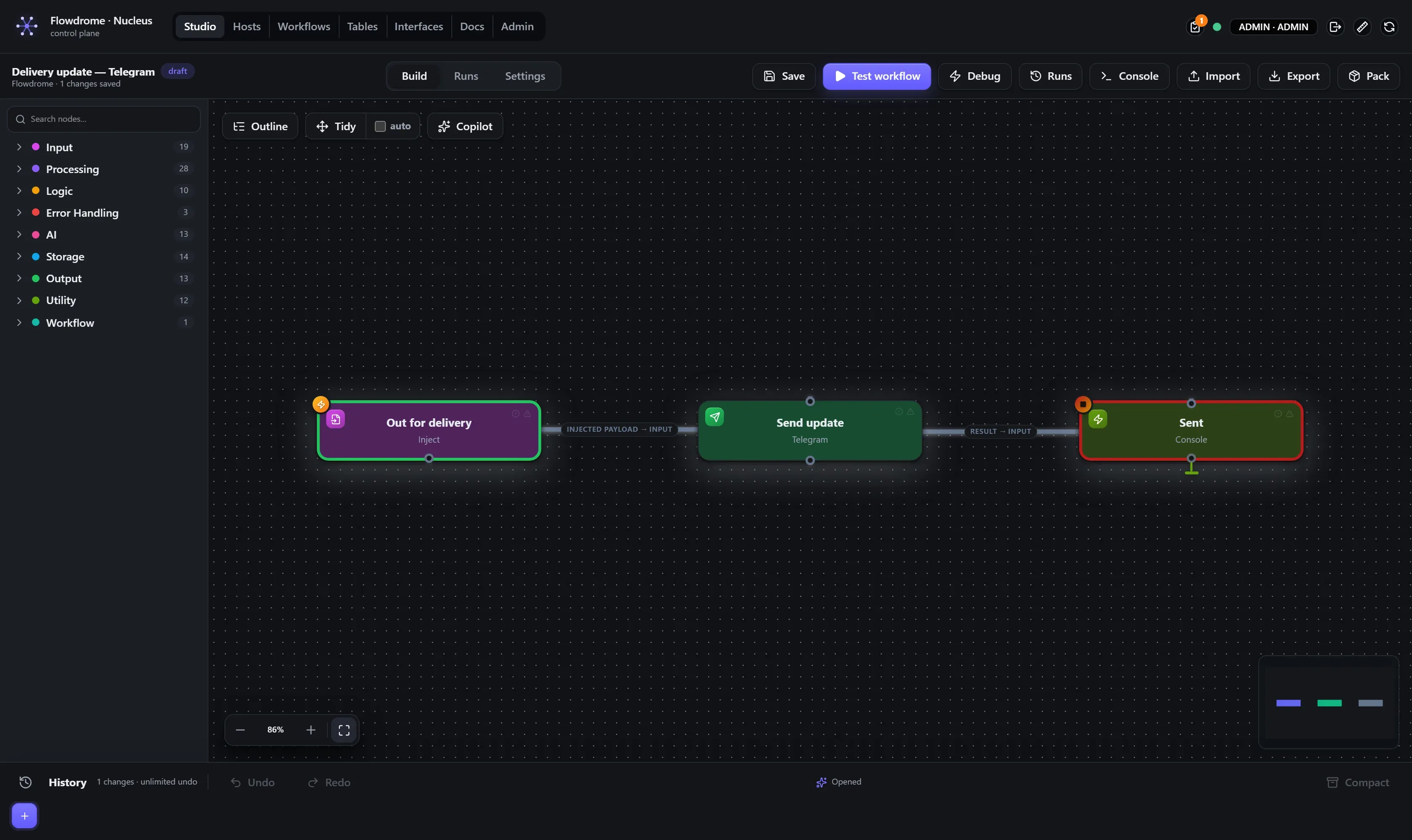

A three-node workflow on the Studio canvas
A workflow as you actually meet it: nodes with typed ports on the canvas. The document behind it is an implementation detail you rarely need to read.

One format, everywhere

There is exactly one workflow document format — flowdrome.workflow.v1 — used by the Studio editor, export/import, the Nucleus registry, and every host’s embedded engine. The graph you draw is the document; nodes carry their id, type, label, position and configuration (plus ◈ carrier attachments like a wired AI Model), edges carry source/target node and port. What you export is what deploys — there are no converters between an “editor format” and a “runtime format”, so there is no class of bug where the two drift apart. (The editor’s canvas library has its own in-memory representation, but it is adapted on the fly and never persisted.)

This has practical consequences:

  • An exported file is a complete, runnable artifact — share it, diff it in git, re-import it anywhere.
  • The node reference can be generated from the same registry the engine uses, so the docs cannot drift from the code.
  • A workflow built by hand (or by a script) deploys exactly like one built on the canvas.

Nodes and ports

Every node declares its input and output ports. Most have one of each; flow-control nodes have more — If has True/False outputs, Switch grows one output per rule, Merge takes Input 1 … Input N, Try exposes SUCCESS/ERROR/FINALLY. Ports are visible on the canvas and the engine routes data per port — a branch is a wire you can see, not a convention buried in config.

Some port sets are dynamic, derived from config: add a rule to a Switch and a new output handle appears; set Merge’s “Number of inputs” to 4 and four pins render. The reference pages note every such rule.

Port labels always render in full — a node with long port names (an HTTP Trigger with a route table, a parallel Execute Workflow) widens to fit its longest label instead of truncating. The label’s typography tells you its state at a glance: bold means something is wired to that port, italic means the port is optional (the node works without it — ◈ Memory, Feedback, Try’s Finally), and an optional port that’s wired is both.

For multi-input nodes the engine orders inputs deterministically by target port — Input 1 is always Input 1 — which is what makes choices like Merge’s “prefer Input 2 on clash” stable and meaningful.

Properties: one model, rich where it counts

Node configuration is a flat list of typed properties — string, number, boolean, select, multiselect, JSON, code, cron, rows, credential — rendered by one generic property editor, which the Studio draws on the node itself. That uniformity is deliberate: every node feels the same, and adding a node to the catalog automatically gives it a complete editing UI, validation, and a generated reference page.

Where a richer editor earns its place, it’s there: a cron builder with live next-fire preview, CodeMirror for JavaScript, a structured rules editor for Switch, and the visual JSON editor everywhere JSON is edited or displayed. Properties can also declare visibility rules (“shown when mode === "cron"”) so a node only shows the settings that currently apply.

Expressions: {{ }} wherever you can enter a value

If you can enter a value, it can hold an expression — paths, math, variable references, anything. That covers plain string fields, field-path boxes (an IF rule’s Field path, Body path, Value path, Field to split out …), and a rule’s compare value. A {{ }} is real JavaScript evaluated per item, in every node, identically in the editor and on deployed hosts (with one deliberate exception, below):

Order {{ $json.orderId }} for {{ $json.customer }} — {{ $json.items.length }} items

Details that matter in practice:

  • $json is the incoming item. Mixed text interpolates; a field that is only an expression yields the raw value (numbers stay numbers).
  • The whole envelope is addressable. An accessor that misses on the content falls back to the wire envelope itself, so {{ $json.createdAt }}, {{ $json.trace.runId }}, {{ $json.meta.result[0].status }} (the result ledger) and full {{ $json.body.payload.x }} paths all resolve — picked from the field browser or typed. Content always shadows the envelope. Plain dotted paths in field-path boxes reach the same fields.
  • In a field-path box, a pure {{ }} entry is the computed value; an interpolated entry like items.{{ $json.idx }} composes a path and resolves it. A non-compiling expression fails the node by name (EXPR_CONFIG_INVALID) — never a silent null.
  • Expressions descend into JSON-in-a-string: when body is a JSON string (a typical HTTP response), {{ $json.body.results[0].name }} parses it on the way in instead of forcing a script node.
  • The run-data viewer’s right-click → Copy Flowdrome path writes the correct expression for any field you can see — the fastest way to get paths right.
  • Fields with their own semantics (code editors, JSON editors, credential/secret fields) are excluded on purpose.
  • The exception — self-evaluating keys. A short list of keys is deliberately skipped by the boundary pass because the node resolves them itself. That list is every record-writing node’s mapping keys (storage.table’s values/rowId, storage.write-file’s path, storage.notion’s properties, storage.redis’s key/value/field …), plus a few templates a node already owns (ai.prompt’s prompt, ai.agent’s sessionKey/message, output.http-request’s headers/query), and the rule nodes’ own keys (logic.if / logic.filter-condition path/value/valuePath — the rule engine resolves them itself). The reason is arity: when a list arrives, the boundary binds $json to the whole array, so {{ $json.title }} in a row mapping resolves against the array and writes a blank column — the node has to resolve it against each record instead (see Processing 1,000 items). The table is EXPRESSION_SELF_EVALUATING_KEYS in packages/runtime-core/src/node-properties.mjs, and both halves are mandatory: a key listed there that the node does not resolve reaches the wire as literal braces (in the per-item path too), and a key the node resolves without being listed is evaluated twice.
  • ${credential.*} and ${variable.*} placeholders resolve once at run start, before any expression runs — see Credentials & variables.

Validation before you run

Every node has a verify rule set, evaluated live in the editor: per-port connectivity (a trigger with no outgoing wire is an error), format checks (cron expressions, URLs, JSON fields), and content warnings (empty code). The badges sit bottom-right on each node — dim when clean, lit with a count when not — with hover details. The same checks gate nonsense early in CI-ish flows: a workflow that fails verification tells you where and why before any data moves.

Frames: Loop, Try and Thread Pool

Three constructs are frames — visual containers whose membership means something to the engine. You drag nodes into them; membership is containment, persisted in the document:

  • Loop Over Items — members run per batch over an item list, with batch size and concurrency settings; results collect on the frame’s done port. See the Loop reference for the captured frame.
  • Try — an error boundary. Members run normally; a member that throws is retried per the frame’s policy and the failure routes to the frame’s ERROR port with the exception — instead of failing the run. FINALLY runs either way. See Try and error handling.
  • Thread Pool — queue-fed concurrency: the frame consumes from an input queue, runs its body on an elastic worker pool, and feeds an output queue. The worker-pool pattern as a drawing.

A fourth frame — Snippet — is purely visual grouping for big graphs; the engine ignores it.

Processing 1,000 items

Four mechanisms, from most native to most explicit — most flows never need the last two:

  1. Whole-set (default). List-aware nodes (Sort, Dedupe, Aggregate, Split Out, Limit, CSV …) process the entire list in one execution. One node run, no per-item overhead.
  2. Record fan-out (default, on nodes that write records). A list arriving at a storage node is N records, not one blob: the node runs its operation once per record and returns one result per record — ten stories into storage.table are ten rows, each coming back with its generated id and its columns. A single object in gives a single result out, un-wrapped; an empty list writes nothing and returns []. Because this is the native behaviour, switching Run once per item on produces the same rows — the toggle is no longer how you make a batch write correctly. The contract lives in packages/runtime-core/src/nodes/per-record.ts.
  3. Run once per item. A per-node toggle that maps the node over its input list. Branching nodes (If / Filter / Switch) then split the stream: a 100,000-item list through an If yields two real item streams, routed per port. Items that error can be dropped instead of failing the run (the per-item error policy).
  4. Loop Over Items frame — when a whole section of the graph must iterate, with explicit batching and concurrency.

Which nodes fan out, and which deliberately don’t

A node opts into the record contract by listing its mapping keys in EXPRESSION_SELF_EVALUATING_KEYS and resolving them per record. Eleven storage nodes do: storage.table, storage.s3, storage.redis, storage.global-key-value, storage.memory (append only), storage.notion, storage.hubspot, storage.google-drive, storage.google-docs, storage.write-file and storage.ftp — plus ai.vector-store, which embeds one vector per record with that record’s own metadata. Where the protocol allows it, the N operations still share one round of setup: Redis pipelines N commands over a single connection, FTP logs in once for the batch, Google Docs sends one batchUpdate per target document.

Two nodes changed shape as a result:

  • storage.memory with append now writes one entry per element, so ten turns leave ten entries and maxItems counts what you’d expect. To store a whole list as one entry, wrap it first — { items: [...] } out of Set or Aggregate is a single record. set, clear, get and recall are whole-value operations on one key and stay single whatever arrives.
  • storage.write-file fans out only when the file path actually varies per record (a {{ }} template, or a path read off each record); a literal path is still one write of the whole batch. When two records resolve to the same path and Append is off, the node fails with IO_WRITE_PATH_COLLISION before writing a byte — overwriting would have kept only the last record and destroyed the rest silently.

Three record-ish nodes are left alone on purpose, not by oversight. storage.sql keeps query and params expression-excluded: making them eligible would reintroduce the string splicing that server-side positional parameters ($1…$n / ?) exist to prevent, and real batching there means a multi-row INSERT. storage.mongo’s insertMany already sends the whole array as one bulk command. storage.google-sheets already posts the batch as one values grid, whose column order is derived once from the first row — per-record calls would cost N round-trips and lose that shared alignment. The messaging senders (Slack, Telegram, Discord, WhatsApp, Gmail, Outlook, Send Email) are also out of scope: they are rate-limited per channel, so one message with N lines is usually the right default rather than a bug.

Sub-workflows

The Execute Workflow node runs other stored workflows — sequentially, or in true parallel with one labelled output per child (w0, w1, …). Compose libraries of small flows and orchestrate them; the debugger can step into a sub-workflow run and surface back to the parent. Workflows-as-building-blocks is also how the AI Agent treats your flows: any stored workflow can be exposed to an agent as a callable tool.
