Interfaces

A workflow is only half the product — someone still has to use it. Interfaces is Flowdrome’s page builder: compose hosted, themed, multi-page sites out of blocks — forms that start workflows, buttons, live (even editable) table grids, stat tiles, chat — served by the Nucleus at /if/your-slug. Visitors need no account and see nothing of the builder.

New here? The Build a form tutorial walks the whole thing end to end — table, workflow, page, publish — and npm run seed:interface-demos installs three finished business examples (support portal, job applications, a key-gated event RSVP) to poke at.

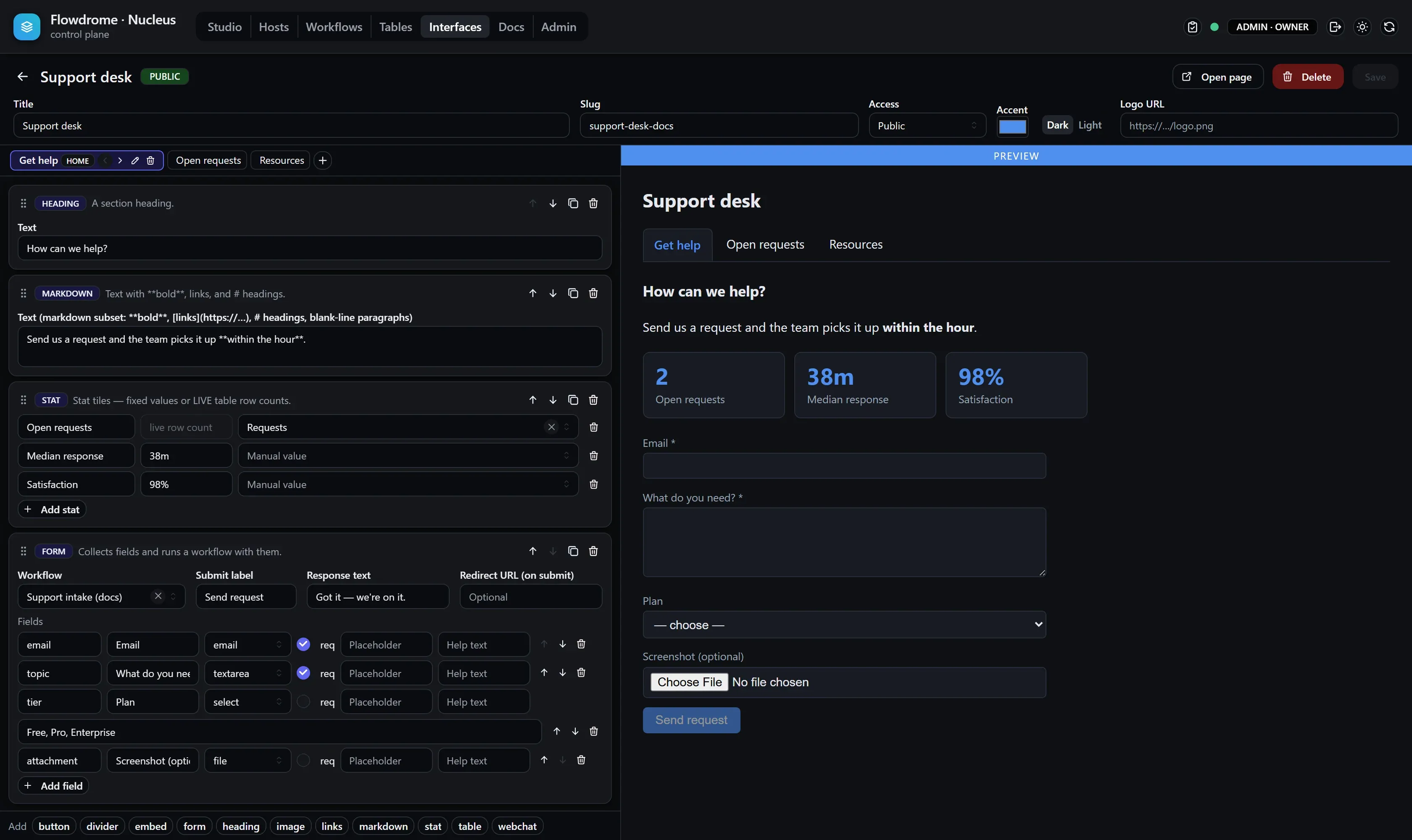

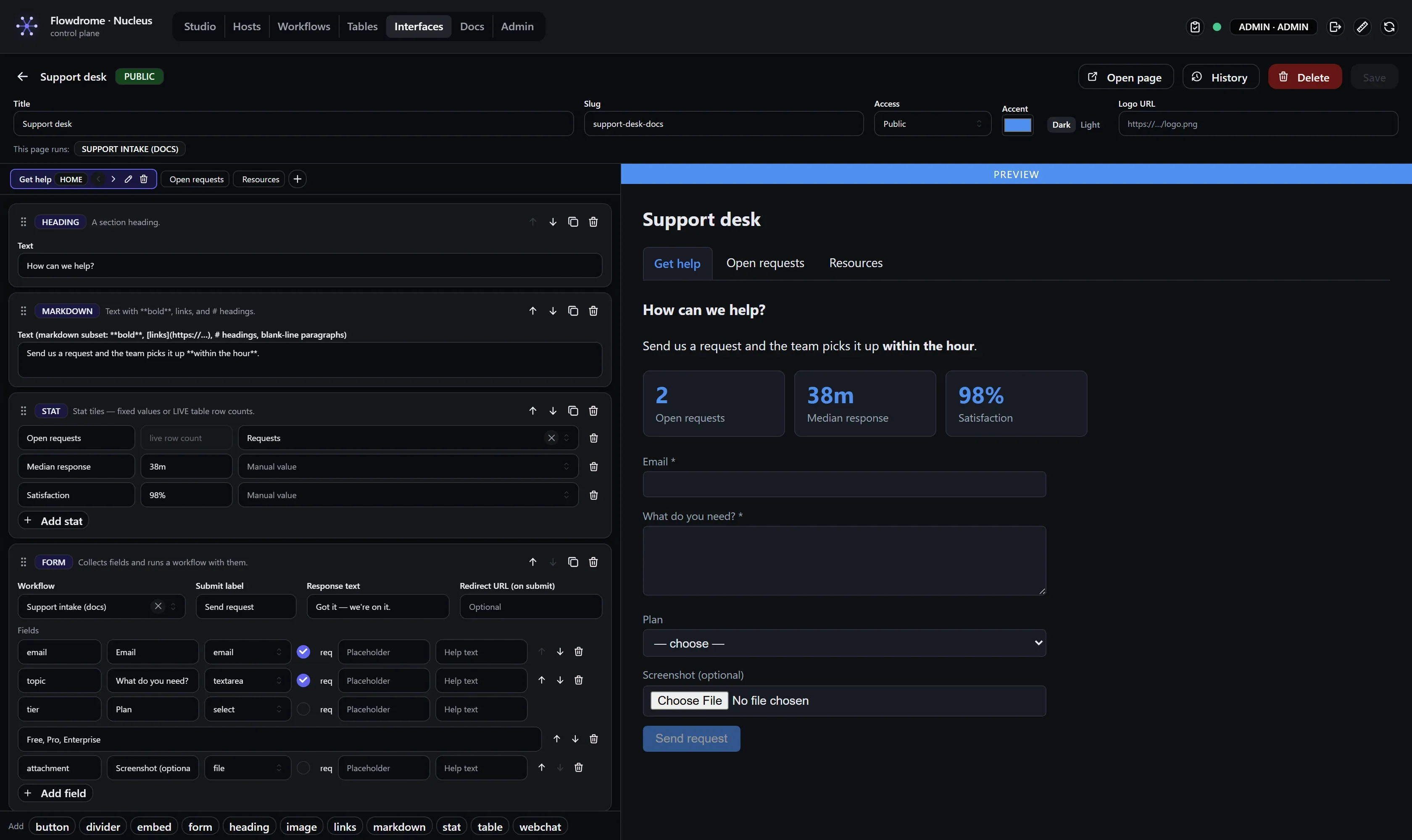

The Interfaces page builder: page tabs and block cards with inline configuration on the left, a live themed preview of the published page on the right — The builder: structure on the left, a LIVE preview on the right — it re-renders through the real page renderer ~half a second after every edit, with real table data, before you save.

The builder

Everything is edited in a split-pane: left — pages and their ordered blocks, each with inline per-kind config, drag (or arrow-key) reorder, duplicate, delete; right — the live preview. Multi-page sites get a navigation bar automatically; the first page is home. Theming is three controls: accent color, light/dark, logo.

Blocks

Block	What it renders
Heading / Markdown	text — `bold`, `[links](https://…)`, `#` headings
Image / Divider / Embed	media, separators, sandboxed iframes
Links	link cards with descriptions
Stat	stat tiles — fixed values or live table row counts
Table	a live grid over a Table: paging, optional search, and — in editable mode — visitors can add rows, edit cells inline, and delete
Button	runs a workflow with a fixed payload (primary / default / danger styles)
Form	typed fields → runs a workflow with them: text, email, number, date, textarea, select, checkbox, and file upload (arrives in the run input as `{filename, contentType, data}`); optional redirect-on-submit
Web chat	embeds a deployed web-chat endpoint

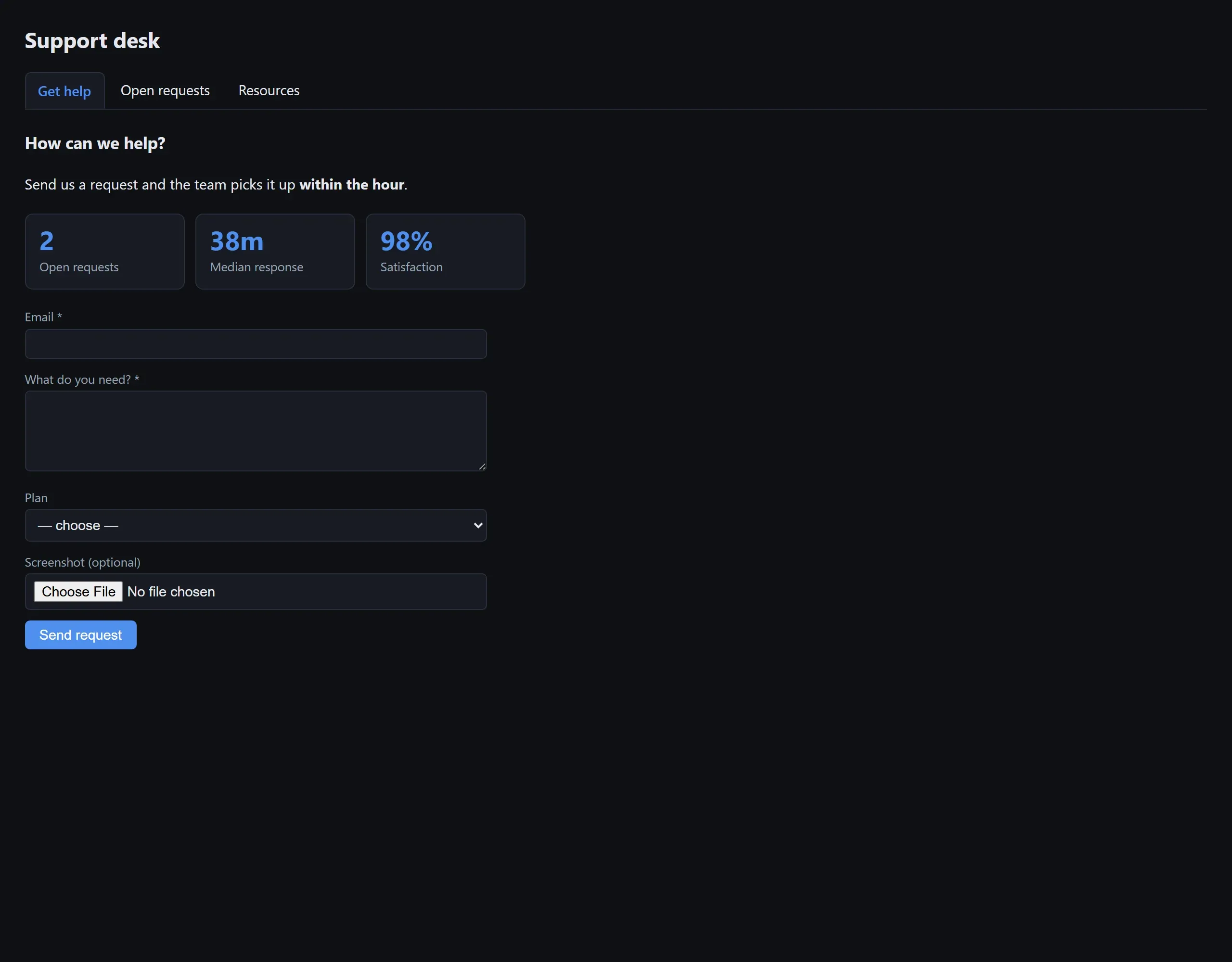

A published Support desk portal as a visitor sees it: page navigation, live stat tiles, and a request form with typed fields including a file upload — What a visitor sees — page nav, live stats straight off a Table, a form that starts a real run. No login, no credentials anywhere in the page.

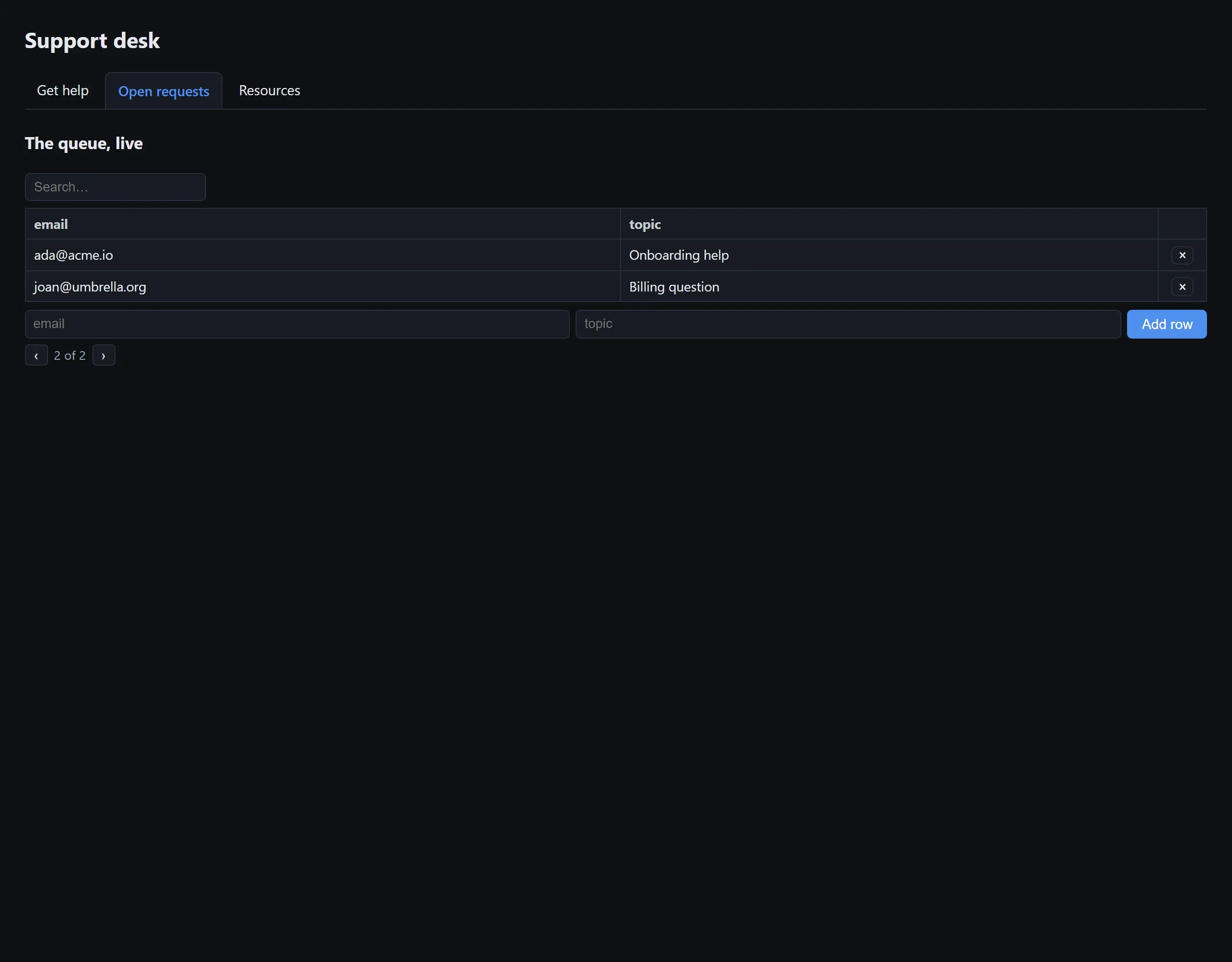

The portal's second page: a searchable, editable live table of requests — An editable table block: visitors search, add rows, edit cells inline — through block-scoped proxies, audited, still credential-free.

Access

Public — anyone with the URL.
Link with key — the URL only works with its ?k=… key; Rotate key kills every shared link on the spot.
Password — visitors get an on-brand password page; the password is stored as a PBKDF2 hash and success mints an HttpOnly session cookie. Logged-in Flowdrome users always pass.

Version history

An interface’s content is versioned exactly like a workflow. Every content change — retitle, retheme, change access, add or remove a page or block, rewire which workflow a form/button runs — mints a new version. The history drawer carries the same teeth as tables and workflows:

Labels — name a version inline (“launch”, “added RSVP page”).
Pins — exempt a version from pruning.
Compare — a page-aware diff: which pages were added, removed, or changed, plus title, slug, and access changes. A slug change (it moves the public URL) is flagged breaking.
Restore — re-applies an old version as a new version.

GET   /api/interfaces/{id}/versions            [{version,savedAt,savedBy,label,pinned}] (newest first)
GET   /api/interfaces/{id}/versions/{v}        the content at v: {slug,title,access,pages,theme}
PATCH /api/interfaces/{id}/versions/{v}        annotate {label?,pinned?}
POST  /api/interfaces/{id}/versions/{v}/restore  re-apply v as a new version

Where used

An interface runs workflows (from its buttons and forms) and is itself carried by deployments. Two views tie it together:

Dependencies — the workflows this interface runs, each flagged present so a missing one surfaces before you publish. The reverse link lives on the workflow: Workflow → Interfaces lists every page that calls it.
Usage — the deployments serving this interface, each with the host, the workflow, the frozen content version, and a stale flag when the live interface has moved on. Editing a published interface mints a new version, but active deployments keep serving their pinned copy until redeployed (see deploy carries a frozen copy).

GET   /api/interfaces/{id}/dependencies   {interfaceId,workflows:[{id,name,present}],missing:[…]}
GET   /api/interfaces/{id}/usage          {interfaceId,version,deployments:[{hostId,workflowId,version,deployedAt,stale}]}
GET   /api/workflows/{id}/interfaces      [{id,title,slug,version}] — pages that call the workflow

Versus Zapier Interfaces

Same builder ergonomics — live preview, multi-page, theming, forms, tables, gated access — but the data grid is your database (editable, live counts, no row limits), forms upload files straight into workflow input, every run has full observability behind it, access gates aren’t a pricing tier, and it is all self-hosted. The regression suite (npm run test:interfaces, 83 checks) exercises every feature above against a live nucleus.

v2.1

Per-user visitor identity via SSO, conditional field visibility, custom domains, and chatbot packaging presets.
